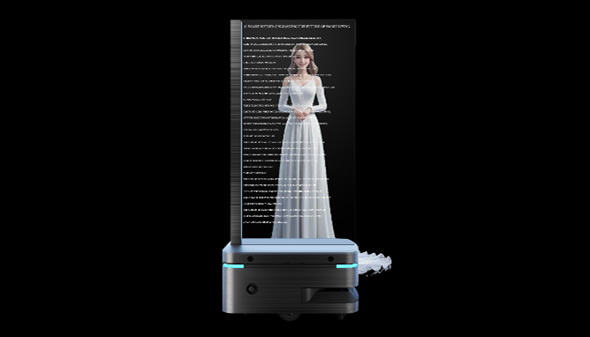

Transparent OLED technology blends digital content with the physical environment. When turned off, the panel looks like a sheet of glass. When active, images appear to float in space without blocking the background. Understanding how a transparent OLED display works helps project teams evaluate its structure, installation requirements, and real-world performance.
How a Transparent OLED Produces Images While Remaining Transparent
OLED technology is self-emissive. Every pixel generates its own light. This design eliminates the backlight used in LCD systems and creates a thin structure that allows natural light to pass through the display.
Self-Emissive Pixel Operation
Each pixel contains organic materials that emit light when an electric current passes through them. Since no backlight is required, the panel remains open to light transmission. This enables transparency while maintaining vivid colors and high contrast.
How Light Passes Through the Panel
To remain transparent, every key layer must allow light to pass through. These layers include the substrate, anode, organic layers, and cathode. When the pixels are off, viewers can see through the panel. When the pixels are illuminated, the emitted colors appear superimposed on the real-world background. This balance creates the floating visual effect commonly seen in retail storefronts, exhibitions, and architectural installations.
Internal Structure of a Transparent OLED Panel
A transparent OLED panel consists of multiple ultra-thin layers stacked together. Each layer plays a critical role in charge transport, light emission, and optical clarity.
Transparent Substrate:
Glass or flexible plastic provides mechanical support while allowing light transmission.
Transparent Anode.
Typically made from Indium Tin Oxide (ITO), which conducts electrical charge while remaining transparent.
Organic Layers:
The hole transport layer, emissive layer, and electron transport layer work together to generate light.
Transparent Cathode:
A semi-transparent metal layer or advanced conductive material completes the electrical circuit.
Each layer must remain extremely thin and highly uniform. Even small variations in optical density can affect both transparency and brightness.
Pixel Structure and the Transparency Balance
Each pixel consists of red, green, and blue subpixels. Some designs also include a white subpixel to improve brightness. Transparent spaces between the subpixels allow viewers to see through the panel.
Increasing the spacing improves transparency but reduces resolution. Increasing pixel density improves image detail but decreases light transmission. Achieving the right balance is essential when designing installations for retail stores, museums, or interior architectural spaces.
Transparent OLED vs. Transparent Micro OLED
Both technologies use self-emissive organic materials, but they serve different applications.
Transparent OLED
- Ideal for medium and large displays
- Built on glass or flexible substrates
- Uses AMOLED backplane technology
- Optimized for retail displays, digital signage, point-of-sale systems, and architectural glass
Transparent Micro OLED
- Built on a silicon CMOS backplane
- Delivers extremely high pixel density, often exceeding 4,000 pixels per inch
- Designed for near-eye applications such as AR glasses, camera viewfinders, and wearable displays
- Provides exceptionally fine detail even at very short viewing distances.
Both technologies achieve transparency through precise layer engineering, but their ideal applications differ according to pixel density and viewing distance.
Where Transparent OLED Displays Are Used Today
Transparent OLED technology enables designers to present digital information without blocking physical objects or natural light. This makes it suitable for a wide range of commercial and professional environments.
Retail Displays and Branding
Retailers use transparent panels to display product information, animations, and pricing while keeping the physical product fully visible behind the screen. This creates depth without closing off the display area.
Architecture and Interior Design
Transparent OLED technology supports smart glass windows and glass partitions. The structure preserves natural lighting while adding programmable content for interior signage, branding, or ambient experiences.
Automotive Applications
Head-Up Display (HUD) systems project navigation, speed, and driving information directly onto transparent glass surfaces. Drivers receive essential information without taking their eyes off the road.
Museums and Exhibitions
Curators can overlay text, diagrams, and animations directly onto artifacts. This enhances visitor engagement without adding physical labels or visual barriers.
Medical Environments
Transparent displays allow medical professionals to view patient information while maintaining visual awareness of the operating room. The open design supports workflow efficiency and situational awareness.
Consumer Electronics and Augmented Reality
Next-generation transparent televisions, smart glasses, and augmented reality devices rely on both transparent OLED and transparent Micro OLED technologies. These systems seamlessly blend digital content with the real world.
Key Advantages and Current Challenges
Transparent OLED technology continues to improve through advances in materials, manufacturing, and display architecture.
Advantages
- High transparency while preserving natural indoor lighting
- Excellent contrast thanks to pixel-level light emission
- Low power consumption since inactive pixels consume minimal energy
- Ultra-thin construction that supports modern product design
- Fast response time suitable for dynamic video content
Current Challenges
- Higher manufacturing costs compared to conventional OLED displays
- Organic materials require advanced encapsulation for long-term stability
- Brightness and transparency must be carefully balanced
- Static content may lead to image retention over time
- Large-scale mass production continues to evolve
These challenges continue to drive research into new materials and more efficient manufacturing technologies.
Frequently Asked Questions
What is the main difference between transparent OLED and conventional OLED?
Transparent OLED displays use transparent electrodes and materials that allow light to pass through both sides of the panel. Conventional OLED displays use an opaque rear structure that blocks light.
How transparent are current commercial panels?
Most commercially available transparent OLED panels offer transparency levels between 20% and 45%, depending on pixel spacing and panel architecture.
Can a transparent OLED display support touch functionality?
Yes. A transparent capacitive touch layer can be integrated without significantly affecting transparency.
Which technology is better for near-eye devices?
Transparent Micro OLED is better suited for near-eye applications because of its extremely high pixel density. Transparent OLED is ideal for medium and large glass-based displays.
How long does a transparent OLED display last?
Organic materials gradually degrade over time, but improvements in encapsulation technology and display driving algorithms continue to extend operational lifespan.
Are transparent OLED displays energy efficient?
Yes. Without a backlight, power is consumed only by illuminated pixels. Dark content requires very little energy.
Why are transparent OLED displays difficult to manufacture?
The manufacturing process requires transparent conductive electrodes, highly precise organic material deposition, and advanced encapsulation techniques. These requirements significantly increase production complexity and cost.
